Carbon Steel Reducer ASME B16.9 Concentric Eccentric — Factory Direct Supplier | Huaxia-Steel

Carbon steel reducers are butt-weld pipe fittings that connect two pipes of different diameters while keeping the line centered (concentric) or offset (eccentric). They are essential for pump suction lines, vessel nozzles, heat exchanger headers, and any process piping that changes line size. Built per ASME B16.9 in ASTM A234 WPB and WPC grades, reducers are ordered together with elbows, tees, and stub ends to complete a piping spool. Huaxia-Steel supplies concentric and eccentric carbon steel reducers from Chinese mills with full dimensional compliance and mill test certificates.

Product Overview

A reducer is a frustum-shaped fitting that gradually transitions between two pipe sizes. Two geometries exist:

Concentric reducer: The centerlines of the large and small ends align. Used where the pipe centerline must remain unchanged – typical for vertical lines and instrument lines.
Eccentric reducer: One of the faces (typically the large end) is offset so that the bottom or top of the line stays flat. Used for pump suction lines (top-flat) to avoid air pockets, or for steam lines (bottom-flat) to avoid condensate collection.

Specifications

Item	Details
Standard	ASME B16.9 (factory-made wrought butt-welding fittings)
Type	Concentric (CR) or eccentric (ER)
Material grades	ASTM A234 WPB, WPC, WPRA, plus other grades on request
Size range	NPS 1/2 x NPS 3/8 to NPS 48 x NPS 40 (DN 15 x DN 10 to DN 1200 x DN 1000)
Wall thickness	SCH 10S, 20S, STD, SCH 40, XS, SCH 80, SCH 120, SCH 160, XXS
End connections	Butt-weld (BW), beveled ends per ASME B16.25
Surface finish	As-formed, shot-blasted, primed, or black
Pressure rating	Matches the schedule of the smaller pipe per ASME B16.9 Table 2.1

Concentric vs Eccentric Reducer – When to Use Each

Concentric reducer – vertical pipework, instrument and gauge lines, thermosyphon reboilers, general change of line size without alignment constraint.
Eccentric reducer with flat-side up – pump suction lines, where the flat top avoids air pocket formation at the suction nozzle.
Eccentric reducer with flat-side down – steam and condensate lines, compressor discharge lines, where the flat bottom avoids liquid collection in the line.

Most process piping uses concentric reducers; the eccentric variant is reserved for specific hydraulic needs.

Available Grades

Carbon steel reducers are supplied in a wide range of materials:

ASTM A234 WPB – the standard grade for moderate and high-temperature service, matches A106 Gr.B / A53 Gr.B pipe.
ASTM A234 WPC – higher carbon, matches A106 Gr.C for elevated-temperature service.
ASTM A420 WPL6 – low-temperature carbon steel for -46 degrees C service, matches A333 Gr.6 pipe.
ASTM A860 WPHY 42 / 46 / 52 / 60 / 65 – high-strength low-alloy reducers for transmission and offshore piping.
ASTM A234 WP9 / WP11 / WP22 – chrome-moly for high-temperature power station service.

Manufacturing Standards

ASME B16.9 – factory-made wrought butt-welding fittings (primary standard).
ASME B16.25 – butt-welding ends.
ASTM A234 – carbon and alloy steel fittings.
ASTM A960 – general requirements for ferritic alloy fittings.
MSS-SP-25 – standard marking system for valves, fittings, flanges.
ASME B31.1 / B31.3 – power and process piping code.
EN 10253-2 – butt-welding fittings for pressure purposes (European equivalent).

Dimensions and Tolerances

Parameter	ASME B16.9 requirement
Overall length (face-to-face)	Per ASME B16.9 Table 2.1 (varies by size, average OD/2 plus the small end OD/4 + small end thickness/2)
OD tolerance	+0/-1% of nominal OD, with no negative tolerance larger than -0.4 mm
Wall thickness tolerance	-12.5% of nominal wall, no negative tolerance larger than -0.4 mm
End squareness	1 degree max
Bevel angle	37.5 degrees +/- 2.5 degrees, root face 1.6 mm +/- 0.8 mm
Concentricity of bore (concentric)	1 mm max offset at center of length
Eccentric offset (eccentric)	1 mm max deviation from specified offset

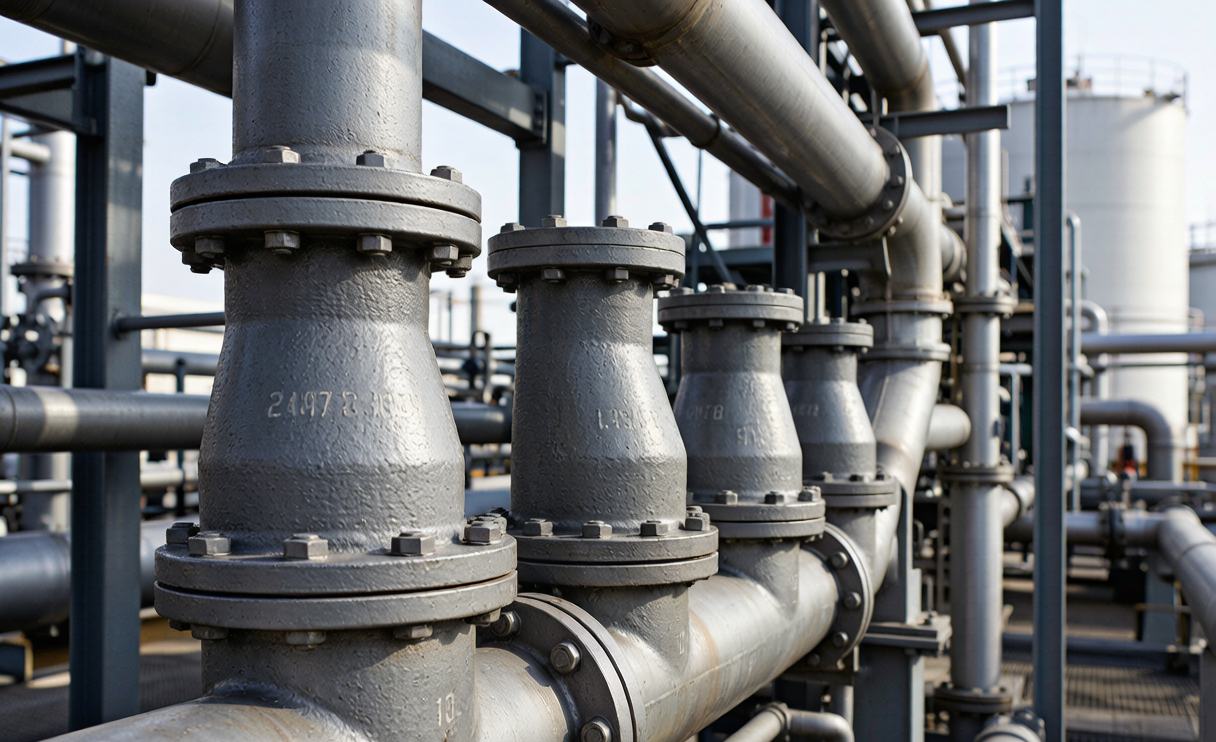

Applications

Refinery and petrochemical process piping headers
Pump suction and discharge nozzles
Boiler and steam generator tube sheets
Heat exchanger headers and channel covers
Marine and offshore piping
Power plant condensate and feedwater systems
Chemical and pharmaceutical process headers
Gas transmission distribution

Manufacturing Process

Carbon steel reducers are made by two main processes:

Press-formed from plate: Plate is flame-cut or plasma-cut to the developed shape of the frustum, then hot-formed by a press or roll to the final cone shape. Welded longitudinal or spiral seams are normalized.
Formed from pipe: A larger pipe is hot-pushed or forged into a reducing shape, or two pipes of different size are welded together with a forged reducer ring.

After forming, the reducer is normalized at 870-925 degrees C to refine the microstructure, then the ends are beveled for butt welding. For heavy walls, a quenching and tempering route can be specified.

Quality Assurance

Mill test certificate per EN 10204 3.1 with heat number, chemistry, and mechanical values of the plate or pipe feedstock.
Dimensional inspection per ASME B16.9 Tables 2.1 and 2.2.
Visual and surface inspection for defects, weld seam, and bevel condition.
Hydrostatic test on request (typical for pressure-piping code work).
Magnetic particle or ultrasonic test of the weld seam on request for critical service.
Hardness testing per ASTM A370 on request.

Independent inspection by SGS, BV, TUV, or Lloyds is standard for export orders and EPC projects.

Packing and Shipping

Small reducers (NPS 1 to NPS 6) are crated in wooden boxes with foam separators and VCI paper. Mid-size reducers (NPS 8 to NPS 16) are palletized and wrapped. Large reducers (NPS 18 and above) are individually mounted on timber frames with lifting lugs. All reducers receive end caps to protect the bevel during transit. FOB, CFR, CIF, and DDP shipping from Tianjin, Shanghai, and Qingdao to project sites worldwide.

Why Buy Carbon Steel Reducers from Huaxia-Steel?

Mill-direct pricing on ASME B16.9 concentric and eccentric reducers
Full NPS 1/2 to NPS 48 size range, all standard schedules
ASTM A234 WPB and WPC standard, with WPL6 and WPHY on request
Complete dimensional inspection per ASME B16.9 and EN 10253-2
One-stop fitting family: elbows, tees, stub ends, and caps from the same mill
Dedicated stock at the largest port warehouses for fast delivery

Need ASME B16.9 carbon steel reducers for a piping project? Send the run and branch diameters (or NPS), schedule, type (concentric or eccentric), grade, and quantity. Our team will deliver a complete offer with full dimensional compliance confirmation within one working day.
