Carbon Steel H-Beam — Factory Direct Supplier | Huaxia-Steel

Huaxia-Steel is a factory-direct supplier of carbon steel H-beams (wide-flange beams) for structural frameworks. With their efficient I/H cross-section, H-beams deliver high strength-to-weight ratios for columns and long-span beams. We supply Q235B, Q355B, A36, S235/S355, and SS400 in standard and custom sizes, with mill test certificates and export packaging.

Product Overview

An H-beam has parallel flanges of roughly equal width connected by a web, forming an “H” cross-section. Compared with I-beams (tapered flanges), H-beams have a wider, more uniform profile that handles bidirectional bending better — ideal for building columns and heavy frames.

Specifications

Parameter	Range / Standard
Height (H)	100 mm – 900 mm
Flange Width (B)	50 mm – 300 mm
Web Thickness	4.5 mm – 20 mm
Length	6 m, 9 m, 12 m, or cut-to-length
Grade	Q235B, Q355B, A36, S235JR/S355JR, SS400
Standard	GB/T 11263, ASTM A992/A6, EN 10034, JIS G3192

H-Beam vs I-Beam

Aspect	H-Beam	I-Beam
Flange	Parallel, equal width	Tapered
Load direction	Bidirectional	Primarily strong axis
Use	Columns, heavy frames	Beams, lighter spans

Mechanical Properties (Typical, Q355B)

Property	Value
Yield strength	345 MPa min
Tensile strength	470-630 MPa
Elongation	21% min

Manufacturing Standards

GB/T 11263 — Chinese hot-rolled H-beam.
ASTM A992 / A6 — US structural wide-flange shapes.
EN 10034 — European structural sections.
JIS G3192 — Japanese dimensional standard.

Applications

High-rise building columns and frames
Industrial plants and warehouses
Bridges and flyover structures
Crane rails and gantries
Offshore and port structures

Quality Assurance

We verify chemical composition, yield/tensile, impact (Charpy) where required, and dimensional tolerances per standard. Mill test certificates accompany every shipment; third-party inspection (SGS, BV, TUV) supported.

Packaging & Shipping

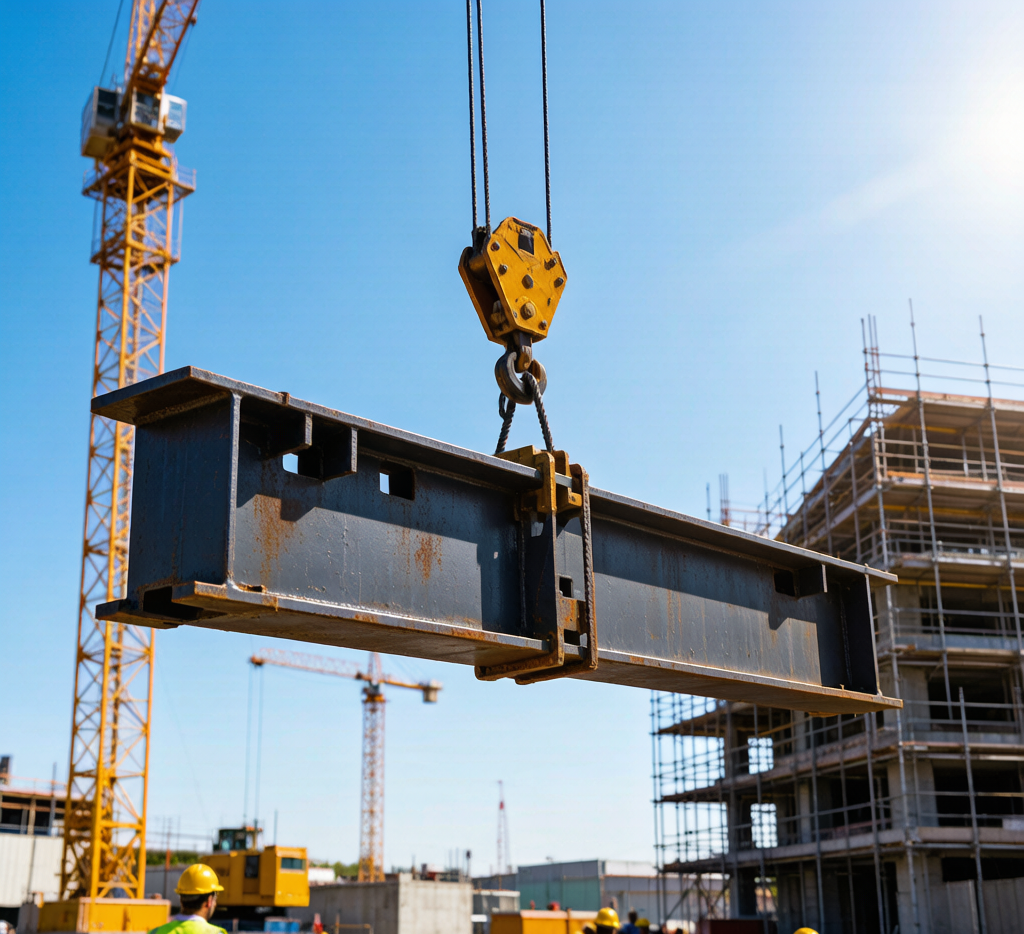

H-beams are bundled, separated by spacers, and loaded by crane into containers (cut lengths) or break-bulk. Anti-rust oil or VCI paper available for long transit.
