Product Overview
Carbon steel T-bar (also called T-section, T-profile, or tee bar) is a hot-rolled structural steel shape with a cross-section resembling the letter “T”. The vertical stem is called the web, and the horizontal top is called the flange. T-bars are used as structural bracing, purlin supports, machinery frames, stair stringers, and architectural supports where an equal-leg angle or channel does not provide the right load path. Huaxia-Steel supplies carbon steel T-bar from 30×30×4 mm to 100×100×10 mm and larger, in Q235B, SS400, S235JR, S275JR, and A36 equivalent grades.
Specifications
| Parameter | Range | Standard / Tolerance |
|---|---|---|
| Height (H) | 30 – 100 mm (custom up to 150 mm) | GB/T 706 / EN 10055 / ASTM A6 |
| Flange width (B) | 30 – 100 mm (matching H) | ± 2 mm typical |
| Web/flange thickness | 4 – 12 mm | ± 0.5 mm typical |
| Length | 5.8 – 12 m (random or fixed) | ± 50 mm |
| Straightness | ≤ 0.4% of length | GB/T 706 |
| Mass per meter | Per theoretical weight table | Density 7.85 g/cm³ |
Available Grades
| Standard | Grades | Typical Use |
|---|---|---|
| GB/T 706 | Q235B, Q345B | Chinese structural and general use |
| JIS G3192 | SS400, SS490 | Japanese general structure |
| EN 10025-2 | S235JR, S275JR, S355JR | European structural steel |
| ASTM A36 | A36 | North American structural projects |
Manufacturing Standards

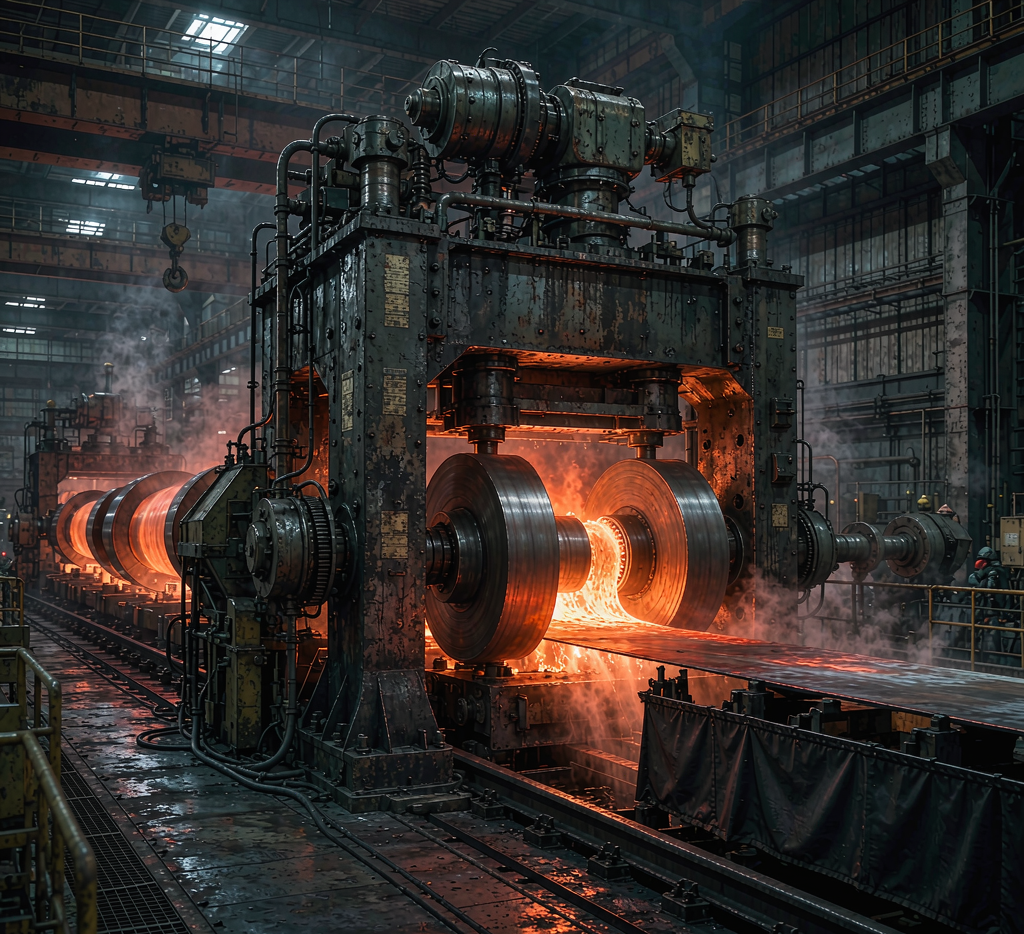

- Hot rolling: blooms are heated and rolled through a series of passes to form the T-profile; finish-rolled to length and straightened.
- Slitting and splitting: larger T-sections can be produced by splitting I-beams or H-beams lengthwise, then edge-dressing.
- Tolerance: GB/T 706 for Chinese sections, EN 10055 for European T-bars, ASTM A6 for imperial sizes.
- Surface: black mill scale; shot blasting, priming, or galvanizing available on request.
Applications
- Structural bracing and truss members
- Machinery frames and equipment supports
- Stair treads, platforms, and mezzanines
- Purlin cleats and roof truss connections
- Automotive and trailer chassis reinforcement
- Architectural and facade support systems
Quality Assurance
- EN 10204 3.1 mill certificate with chemistry and mechanical properties
- Dimension check: H, B, thickness, length, and straightness
- Surface inspection for scale, cracks, and edge defects
- Bundle weight and piece count verification
- Optional third-party inspection

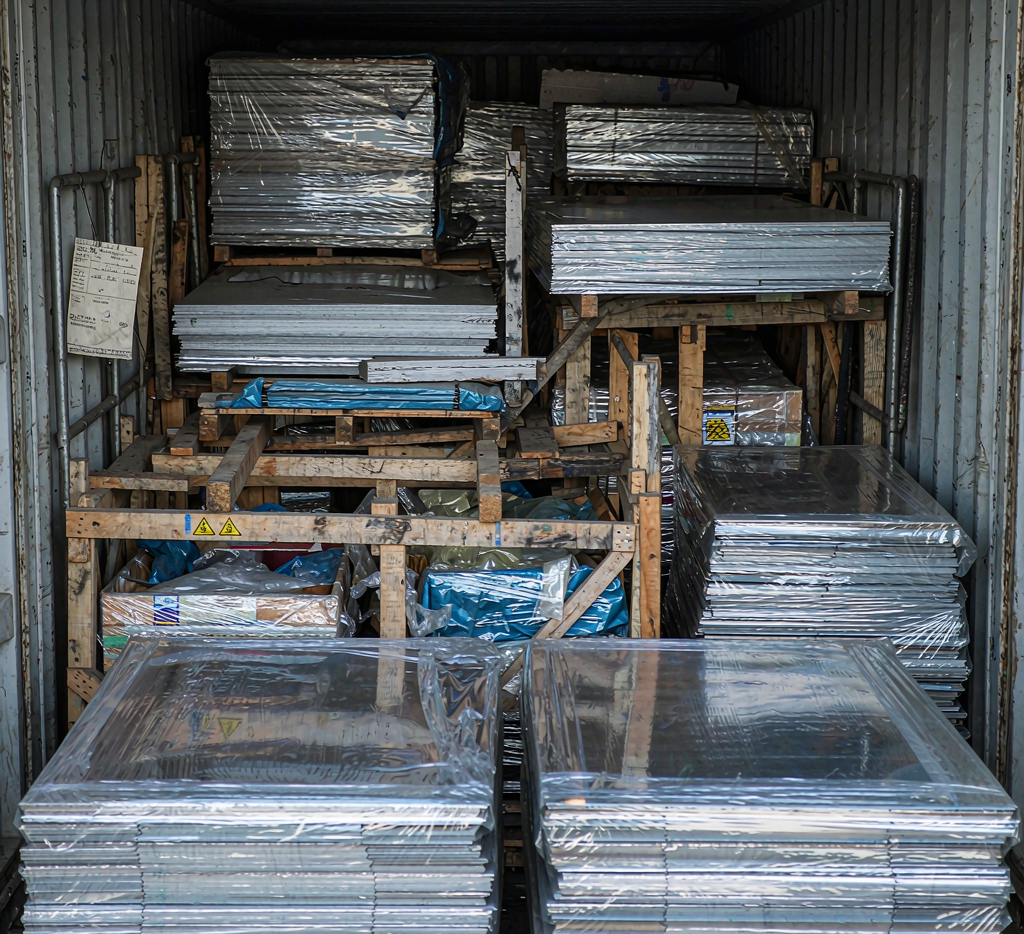

Packaging & Shipping
- Bundled with steel strapping and wooden separators
- Marked with grade, size, heat number, and length
- Oiled or VCI-wrapped for sea freight
- Shot-blasted and primed bundles protected with film
- Container or break-bulk loading with tally and photos
Huaxia-Steel supplies carbon steel T-bar / T-section in Q235B, SS400, S235JR, S275JR, and A36 equivalent grades, 30×30×4 mm to 100×100×10 mm and above, cut-to-length. Send us your T-bar size, grade, length, and quantity for a same-week factory-direct quotation.
