Carbon steel sheet piles are interlocking steel sections driven into the ground to form continuous retaining walls for excavations, cofferdams, quay walls, and flood protection. Huaxia-Steel supplies hot-rolled and cold-formed sheet piles in Z-type, U-type, and straight-web profiles from EN 10248, JIS A5523/A5528, and ASTM A572/A328 bases, with S355GP/S355 grades, corrosion-protection coating options, and cut-to-length service for marine and foundation contractors worldwide.

Product Overview

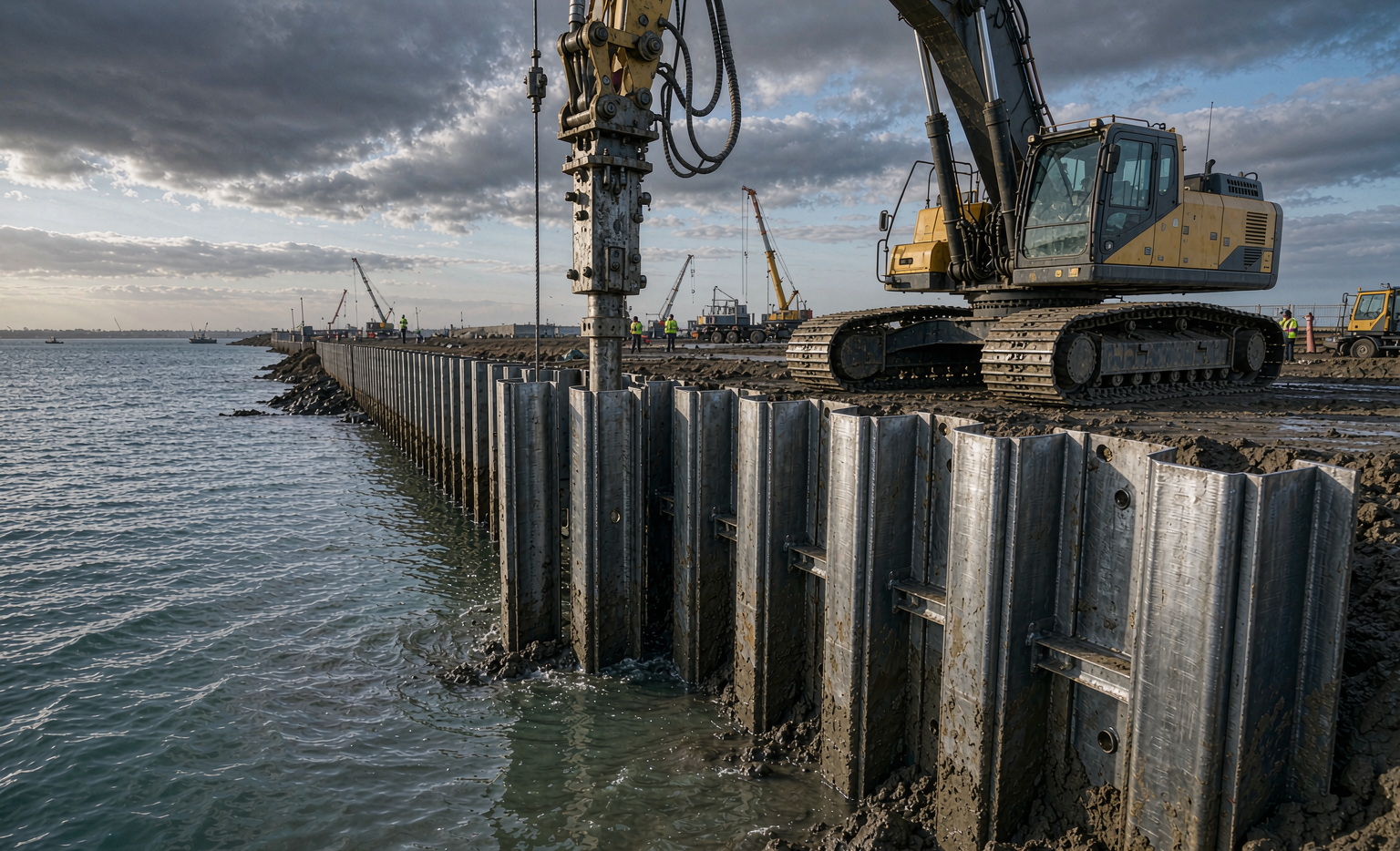

Hot-rolled sheet piles are formed from beam blanks with integral interlocks — Larssen-type U profiles and Z profiles — that lock wall-to-wall with high clutch strength and low leakage. Compared with cold-formed piles, hot-rolled sections offer thicker interlocks, better driving durability in dense soils, and proven performance in hard ground. Wall systems are built by driving piles one by one (panel driving for alignment-critical walls), then anchoring, bracing, or cantilevering per the geotechnical design. Steel sheet piles are also extractable and reusable across multiple projects, improving whole-life cost versus concrete walls.

Specifications

Parameter	Standard / Range
Profile Types	U-type (AU, PU series), Z-type (AZ, PZ series), straight-web (AS series)
Section Width	500 – 750 mm (U-type), 600 – 750 mm (Z-type)
Section Height	210 – 500 mm
Wall Thickness	6 – 22 mm
Section Modulus	600 – 6,000 cm³/m (wall)
Steel Grades	S235GP, S275GP, S355GP (EN 10248); SY295/S355 (JIS A5523); ASTM A572 Gr.50 base
Lengths	6 – 24 m mill lengths; cut-to-length and corner sections available
Interlock Type	Larssen (hot-rolled); cold-formed Larssen or universal
Coating Options	Bare, bituminous, epoxy, or dual-layer marine coatings on water side

Common U-Type Profiles (EN 10248, S355GP)

Section	Width (mm)	Height (mm)	Thickness (mm)	Mass (kg/m²)	Modulus (cm³/m)
AU14	600	360	8.5	63.4	1,350
AU18	600	420	9.8	74.5	1,800
AU20	600	450	11.0	81.4	2,200
AU25	600	450	13.0	95.1	2,700

Available Grades

• S235GP / S275GP / S355GP (EN 10248): European standard hot-rolled piles with guaranteed interlock strength
• SY295 / SY390 (JIS A5523 hot-rolled): Japanese standard for marine works
• ASTM A572 Gr.50 / A328: American-specified cold-formed and hot-rolled projects
• Corrosion allowances per Eurocode 3 Part 5 or custom marine service-life calculations

Manufacturing Standards

• EN 10248-1/-2 — Hot Rolled Sheet Piling of Non-Alloy Steels
• EN 10249 — Cold Formed Sheet Piling
• JIS A5523 / A5528 — Hot Rolled / Cold Formed Steel Sheet Piles
• EN 1993-5 (Eurocode 3 Part 5) — Design of steel piling, corrosion allowance rules

Applications

• Deep excavation support for basements and underground structures
• Cofferdams for bridge piers and marine construction
• Quay walls, breakwaters, and port dredging walls
• River training, flood walls, and embankment protection
• Landfill containment and cut-off walls

Quality Assurance

Profile dimensions, interlock tolerances, and mechanical properties are verified per EN 10248-2 sampling rules, with test certificates per EN 10204 3.1 issued per heat. Interlock tension testing (per EN 10248 Annex) confirms clutch strength for walls designed on interlock force. Straightness and twist are checked before banded dispatch — critical for panel driving alignment. Coated piles receive coating thickness measurement (DFT gauge) and holiday testing for marine systems. Third-party inspection and witnessed loading are welcome for port and infrastructure projects.

Packing and Shipping

Sheet piles are banded in bundles of 5–20 piles with timber or steel separators protecting interlocks, stenciled with section mark and length on each pile. Lengths up to 18 m ship in flat racks or break-bulk with dunnage plans provided; interlocks are greased for long voyages to prevent seizing before driving. Every shipment includes packing list, mill certificates, and handling/driving guidance notes.
