SSAW Carbon Steel Pipe — Factory Direct Supplier | Huaxia-Steel
Huaxia-Steel supplies spiral submerged arc welded (SSAW) carbon steel pipe for oil and gas transmission, water supply, piling and structural projects. Our SSAW pipe is produced from high-quality hot-rolled coil using double-sided submerged arc welding, giving it excellent strength, weld consistency and dimensional stability for large-diameter applications.
Product Overview

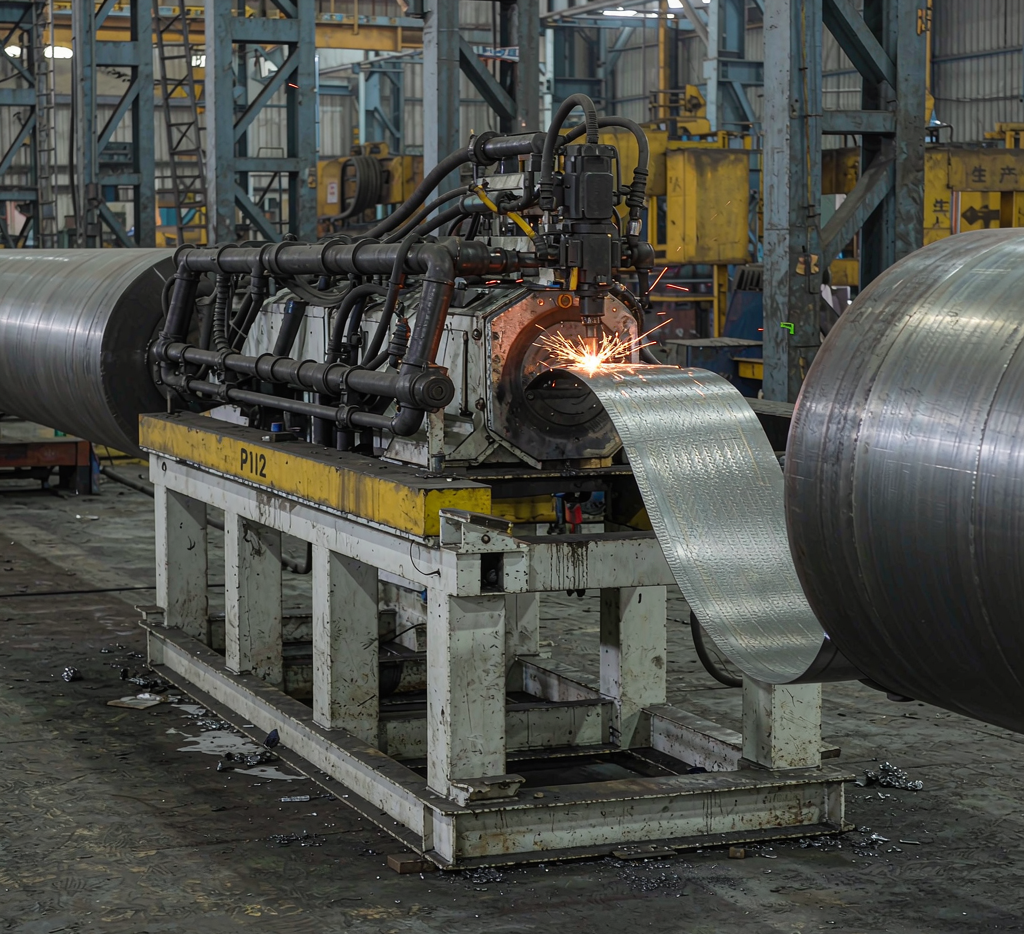

SSAW pipe is formed by rolling a steel strip into a spiral shape and welding both inside and outside seams. This process allows a single coil width to produce a wide range of diameters, making SSAW pipe highly cost-effective for long-distance pipelines and large structural columns. Common outside diameters range from 219 mm to 3,500 mm with wall thicknesses from 6 mm to 25 mm.
Specifications
| Parameter | Range |
|---|---|
| Outside Diameter | 219 mm – 3,500 mm |
| Wall Thickness | 6 mm – 25 mm |
| Length | 6 m, 12 m, or custom cut |
| Ends | Plain, beveled, threaded, flanged |
| Surface | Bare, black, 3PE/FBE coated, galvanized |
| Tolerance | OD ±1%, wall thickness ±10% (per standard) |
Available Steel Grades
- API 5L Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
- ASTM A252 Grade 1 / 2 / 3
- EN 10219 S235JRH, S275J0H, S355J2H
- GB/T 9711 L245, L290, L360, L415
- SY/T 5037 Q235B, Q345B
Manufacturing Standards
Our SSAW carbon steel pipe can be produced to API 5L for line pipe service, ASTM A252 for piling, EN 10219 for structural hollow sections, and Chinese standards such as GB/T 9711 and SY/T 5037. Each production run is supported by a mill test certificate and optional third-party inspection.
Applications
- Long-distance oil and gas pipelines
- Water transmission and sewage systems
- Piling and marine structures
- Penstocks and hydroelectric projects
- Structural columns and bridge supports
Quality Assurance
Quality control includes ultrasonic testing of the base material, X-ray or ultrasonic inspection of welds, hydrostatic testing, dimensional checks and surface inspection. We can arrange SGS, Bureau Veritas or TÜV inspection on request.
Packing and Shipping
Large-diameter SSAW pipe is usually shipped in bare bundles or loose pieces for bulk vessels. Smaller lots can be loaded in containers with proper chocking and separation. Pipe ends are protected with plastic caps or steel rings to prevent damage during transit.
Why Buy SSAW Pipe from Huaxia-Steel?
- Direct mill pricing with no trading margin
- Diameters up to 3,500 mm in single lengths up to 12 m
- Full API 5L, EN 10219 and ASTM certification
- Custom coatings and end preparations
- Export packing and documentation support
Request a quote now and receive SSAW carbon steel pipe pricing, lead time and a sample MTC within one working day. Contact our sales team.
