Huaxia-Steel manufactures and exports carbon steel bright bars with precision cold-drawn, peeled, and centerless-ground finishes. Our bright bars deliver superior dimensional accuracy, smooth surface finish, and enhanced mechanical properties compared to hot-rolled equivalents. Available in round, square, and hexagonal profiles, we serve automotive, hydraulic, machinery, and general engineering industries with mill-direct pricing and full certification.
Product Overview
Carbon steel bright bar is produced by cold drawing hot-rolled bar through a tungsten carbide die, followed by straightening and cutting. The process improves tensile strength by 15-25%, reduces diameter tolerance from +/- 0.50mm to +/- 0.02mm, and produces a bright, smooth surface (Ra 0.8-3.2 micrometers) suitable for direct use or minimal machining.
Specifications
| Parameter | Range / Standard |
|---|---|
| Diameter (round) | 3mm to 300mm |
| Across Flats (hex/square) | 5mm to 100mm |
| Length | 3m, 6m, or custom cut-to-length |
| Diameter Tolerance | h9, h8, h7, h6 (ground) |
| Straightness | 0.5mm/m (CD), 0.2mm/m (ground) |
| Surface Roughness | Ra 0.8-3.2 micrometers |
Available Grades
- SAE/AISI: 1018, 1020, 1026, 1045, 1050, 1055, 1144
- JIS: S20C, S35C, S45C, S50C, S55C
- DIN: C22, C35, C45, C50, C55, 11SMnPb30
- GB: 20#, 35#, 45#, 50#, 55#
- Free-machining: 1215, 12L14, 11SMn30 (leaded and lead-free)
Manufacturing Standards

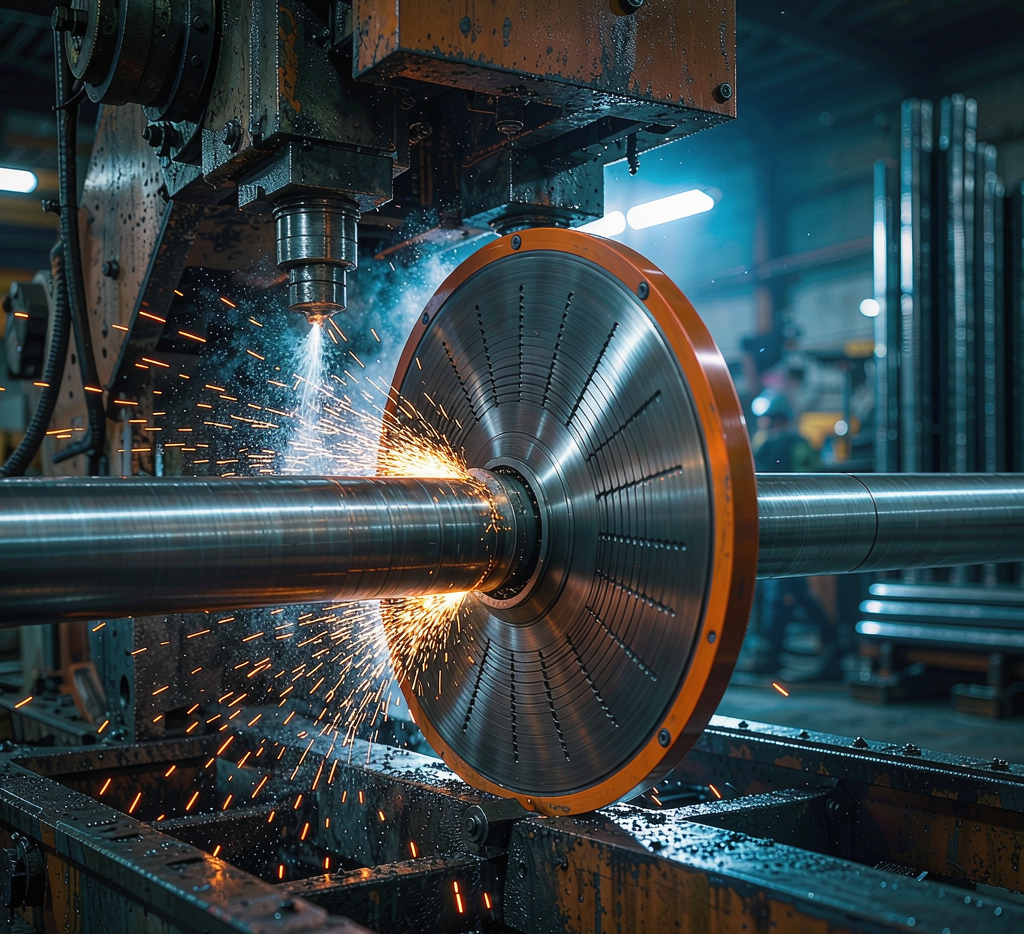

Our bright bar production follows ISO 9001 quality management with in-process dimensional checks every 500kg. Cold drawing is performed on hydraulic draw benches with automatic feeding and inline straightening. For precision ground bars, centerless grinding achieves h6 tolerance and 0.2mm/m straightness.
All bars are supplied with mill test certificates per EN 10204 3.1 or 3.2, including chemical composition, mechanical properties, hardness, and dimensional verification. Third-party inspection by SGS, BV, or TUV is available upon request.
Applications
- Automotive shafts, axles, and pins
- Hydraulic cylinder rods and piston rods
- Machinery spindles, lead screws, and guide rods
- Conveyor rollers and bearing housings
- Fasteners, bolts, and studs
- General engineering and maintenance parts
Quality Assurance
Each production batch is tested for:
- Chemical composition (spectrometry)
- Tensile strength and yield strength
- Elongation and reduction of area
- Hardness (HB, HRB, or HRC as applicable)

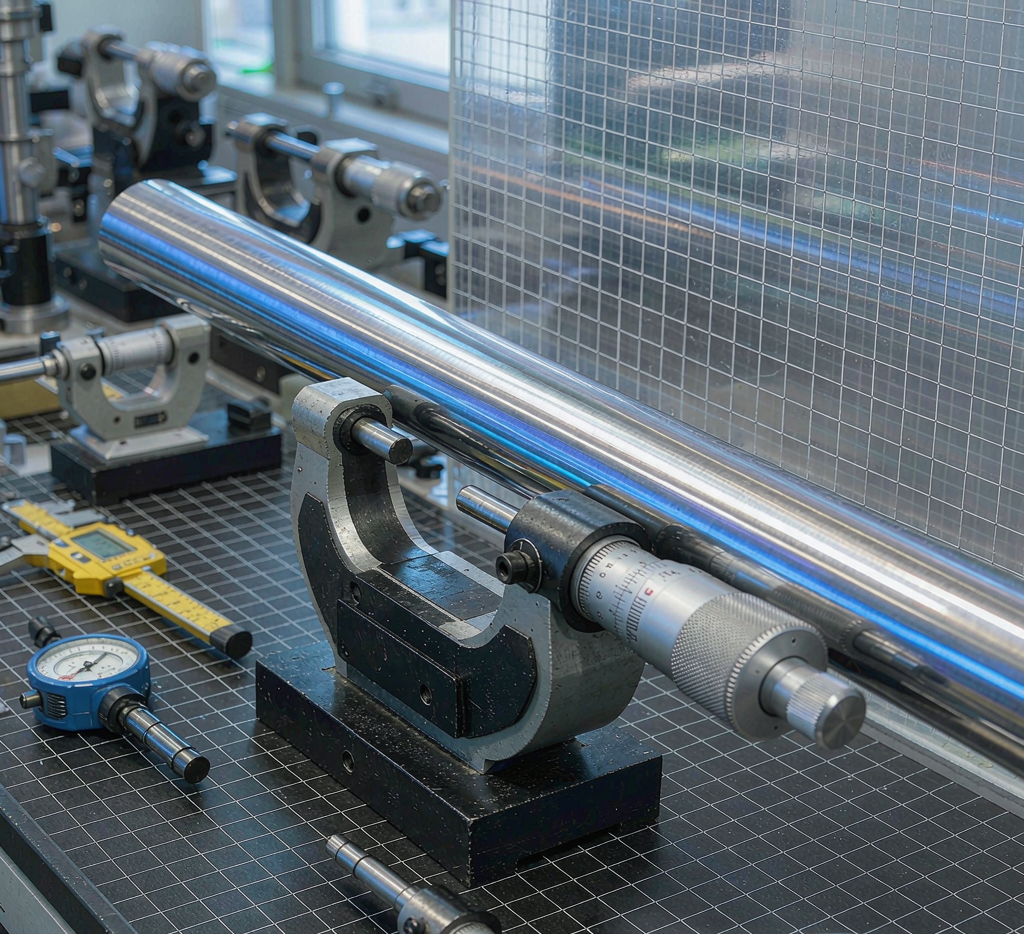

- Dimensional accuracy (micrometer and laser measurement)
- Straightness ( granite table and feeler gauge)
- Surface quality (visual and roughness meter)
Packing and Shipping
Bright bars are bundled with steel strapping (500-2000kg per bundle) and protected with VCI paper or polyethylene wrapping to prevent rust during transit. Precision ground bars are individually sleeved in cardboard tubes for surface protection. For export, bundles are loaded in containers with proper dunnage and bracing to prevent movement.
Request a quote for carbon steel bright bars today. Specify grade, profile, diameter/across-flats, length, tolerance class, quantity, and destination. Huaxia-Steel delivers competitive FOB, CFR, and CIF pricing with 10-20 day production lead time.
