Carbon steel concentric reducers provide a smooth, centre-aligned transition between pipes of different diameters. Unlike eccentric reducers, the concentric design keeps the centreline constant, making it ideal for vertical installations and pump suction lines where air pockets must be avoided. Huaxia-Steel manufactures seamless and welded carbon steel concentric reducers to ASME B16.9, EN 10253-1/2 and GOST 17378 with full dimensional control and pressure testing.
Product Overview
A concentric reducer joins two pipes of different nominal diameters along a common central axis. The outer surface tapers uniformly from the larger end to the smaller end. This geometry:
- Maintains symmetrical flow distribution, reducing turbulence
- Prevents air or vapour trapping in vertical pump suction lines
- Provides uniform support when used in vertical columns
- Matches seamlessly with butt-weld piping for high-integrity joints
Carbon steel concentric reducers are standard fittings in process piping, steam distribution, fire protection and HVAC systems.
Specifications and Dimensions
| Parameter | Standard Range |
|---|---|
| Size range | 1/2″ × 1/4″ – 48″ × 42″ (larger on request) |
| Wall thickness | Sch 10 – Sch 160, STD, XS, XXS |
| Type | Seamless (≤ 24″) or welded (> 24″ or on request) |
| End preparation | Plain bevel (30° + 2.5° land) per ASME B16.25 |
| Standards | ASME B16.9, MSS SP-75, EN 10253-1/2, GOST 17378 |
Dimensional Data (ASME B16.9 Excerpt, Sch 40)
| Large End × Small End | End-to-End Length H (mm) |
|---|---|
| 3″ × 2″ | 76 |
| 4″ × 3″ | 76 |
| 6″ × 4″ | 102 |
| 8″ × 6″ | 102 |
| 10″ × 8″ | 127 |
| 12″ × 10″ | 140 |
| 16″ × 12″ | 140 |
| 20″ × 16″ | 152 |
| 24″ × 20″ | 152 |
Custom lengths, wall schedules and transition ratios can be fabricated for vessel nozzles, heat-exchanger channels and specialty skids.
Material Grades
| Standard | Grade | Notes |
|---|---|---|
| ASTM A234 | WPB | Most common; seamless or welded; –29 °C to +425 °C |
| ASTM A234 | WPC | Higher strength variant of WPB |
| ASTM A420 | WPL6 | Low-temperature service to –46 °C |
| ASTM A860 | WPHY 42 – 70 | High-yield pipeline service |
| EN 10253-2 | P235GH, P265GH, P355GH | European pressure equipment |
| JIS B2312 | SGP, STPG370 | General carbon steel piping |
| GB/T 12459 | 20#, Q235B, 16Mn | Chinese standard pipe fittings |
Chemical Composition (ASTM A234 WPB)
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | 0.29 – 1.06 |
| Phosphorus (P) | ≤ 0.050 |
| Sulfur (S) | ≤ 0.058 |
| Silicon (Si) | ≥ 0.10 |
| Chromium (Cr) | ≤ 0.40 |
| Vanadium (V) | ≤ 0.08 |
| Copper (Cu) | ≤ 0.40 |
| Nickel (Ni) | ≤ 0.40 |
| Molybdenum (Mo) | ≤ 0.15 |
Mechanical Properties (ASTM A234 WPB)
| Property | Value |
|---|---|
| Tensile strength | ≥ 415 MPa (60 ksi) |
| Yield strength | ≥ 240 MPa (35 ksi) |
| Elongation | ≥ 22% (longitudinal) |
Manufacturing Process
- Seamless reducers: Hot-formed from seamless pipe using hydraulic bulging or press-forming dies; no welds in the body
- Welded reducers: Pressed from plate halves and longitudinally welded; weld seam is 100% radiographed or ultrasonically tested
- Heat treatment: Normalizing or stress relieving per material grade and code requirement
- Bevelling: Machine bevel to 37.5° ± 2.5° with 0 – 1.6 mm land per ASME B16.25
- Finishing: Shot blasting, dimensional inspection and marking
Applications
- Process piping: Line size changes in refineries and chemical plants
- Steam systems: Header-to-branch transitions in power plants

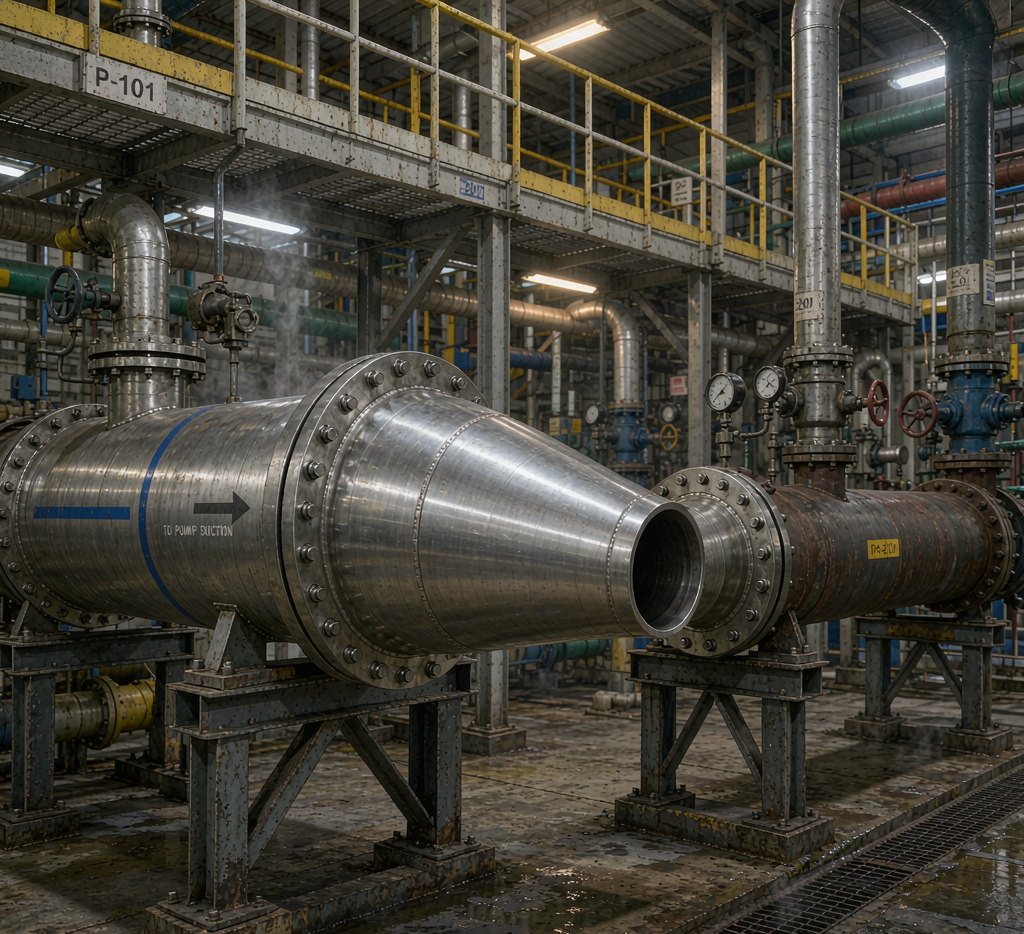

- Pump stations: Suction lines where air pockets must be eliminated
- Fire protection: Main-to-branch reductions in sprinkler risers
- Water treatment: Pump suction and discharge headers
- HVAC: Chilled water and heating distribution mains
Quality Assurance
- Material certificates to EN 10204 3.1 or 3.2
- Chemical analysis and mechanical testing per heat

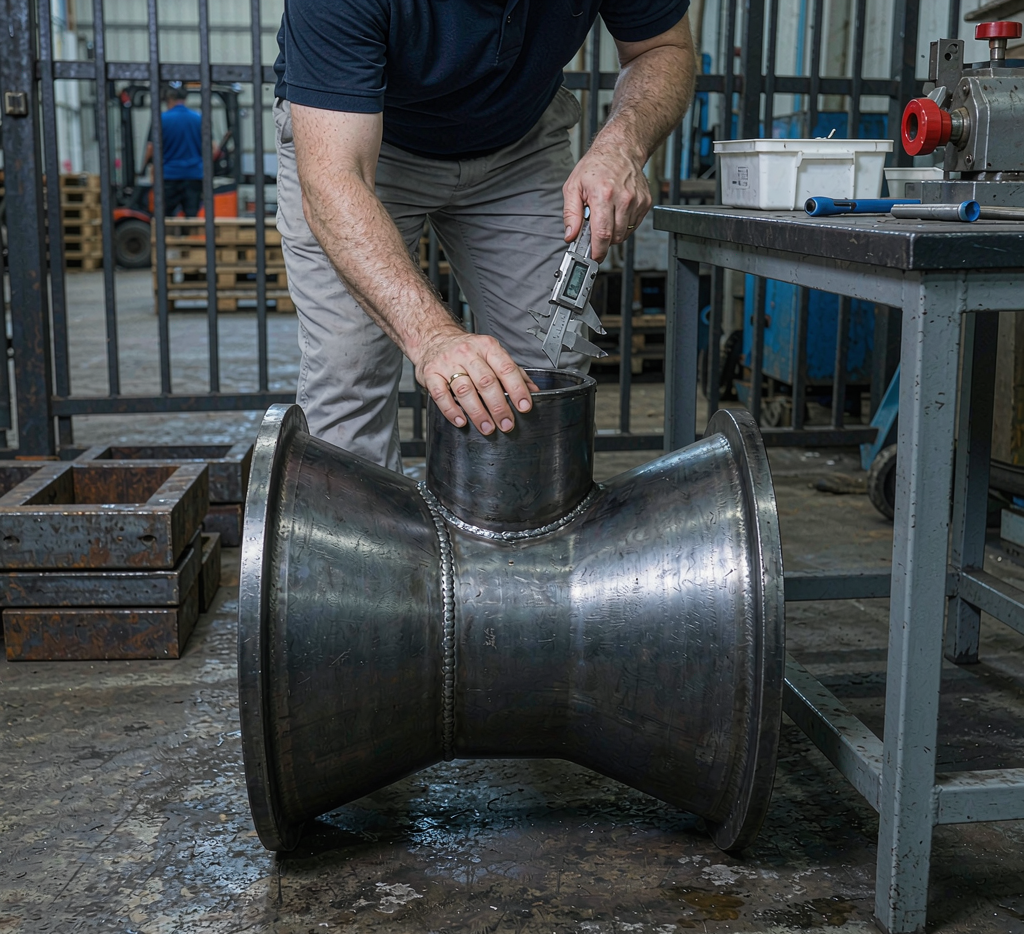

- Dimensional inspection: OD, wall thickness, end-to-end length, bevel angle, concentricity
- Visual inspection per MSS SP-55 acceptance criteria
- NDT: 100% RT or UT on welded seam; MT or PT on bevel edges
- Hydrostatic testing on request
Packing and Shipping
- Individual wrapping with oil-coated paper or VCI film
- Plywood crates or steel cages for sizes up to 24″
- Bulk container loading with separator racks for large-diameter reducers
- Bevel ends protected with plastic caps
- Marking: size, schedule, material, heat number, standard and production lot
Why Buy Carbon Steel Concentric Reducers from Huaxia-Steel?
- Complete range from 1/2″ to 48″ in stock or short-lead custom forging
- Seamless and welded construction to match project code and budget
- Full material traceability and MTC documentation
- Third-party inspection and witness testing available
- Competitive pricing on mill-direct volume orders
- Fast turnaround on urgent project requirements
Request a quotation for carbon steel concentric reducers. Provide large end × small end dimensions, wall schedule, material grade, standard and quantity. Our piping specialists will confirm availability, lead time and certification options.
